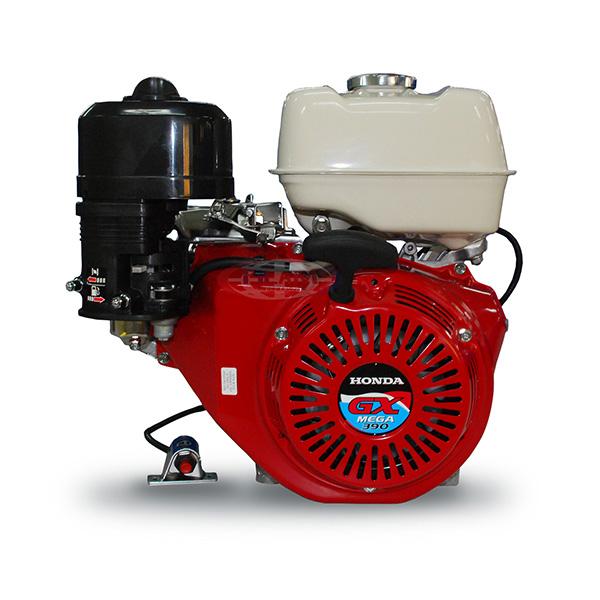

Honda GX390 MEGA MARINE LBHB Gasoline Marine Engine 16.0 HP

32,000.00

Chat with Us!
Share this:

Description

Product Details:
· This engine is for Marine use only.
· Fuel Efficiency – Honda GX-Mega Marine engines have OHV combustion that gives high torque and power while minimizing the consumption of gasoline.
· Powerful and Reliable – GX engine performance is tried and tested (Digital CD and high engine rpm).
· Easy to Assemble – Aside from the fact that it is lightweight, Honda GX-Mega Marine is very easy to assemble because of its compact design.
· Easy to Start –Due to its Digital CDIand light pull recoil, starting the engine would be a very easy job.
· Engine Stop Switch
· Stainless Muffler
· Digital CDI with Limiter

Specifications:
Model
GX390T2 (LBHB)

Type
4 Stroke, OHV, Single cylinder, inclined 25°

Displacement
389 cm³ (23.7 cu-in)

Bore x stroke
88.0 x 64.0 mm (3.5 x 2.5 in)

Net power (SAE J1349) * 1
9.8 kW (13.1 HP) @ 4000 rpm

Maximum net torque (SAE J1349)
26.9 N-m (2.74 kgf-m, 19.8 lbf-ft) @ 3000 rpm

Compression Ratio
8.2 : 1

Fuel consumption (at continuos rated power) *1
4.7 Liters (1.24 US gal, 1.03 lmp gal)/h

Ignition system
Transistorized magneto

Lubrication system
Forced splash

Oil capacity
1.1 Liter (1.16 US qt, 0.97 lmp qt)

Starting system
Recoil starter
Air cleaner
Grid type
Governor
Mechanical centrifugal
Fuel used
Gasoline with a pump octane rating of 86 or higher
Fuel tank capacity
6.1 Liters (1.61 US gal, 1.34 lmp gal)
